Trilo B7
Trilo B7
Get a Quote for Trilo B7
Description

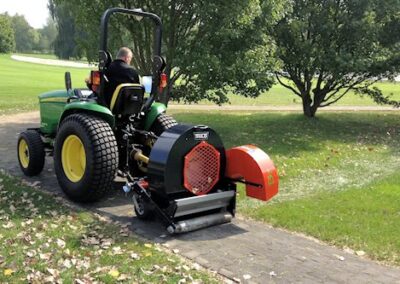

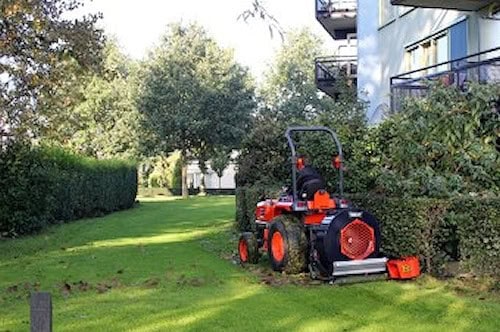

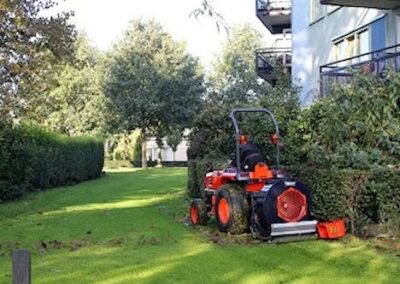

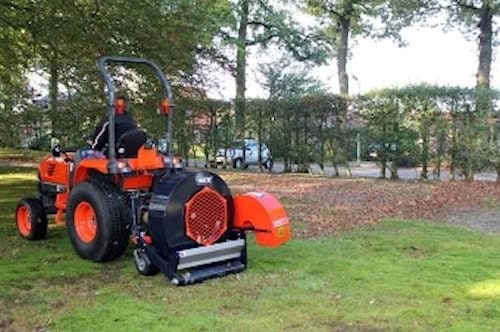

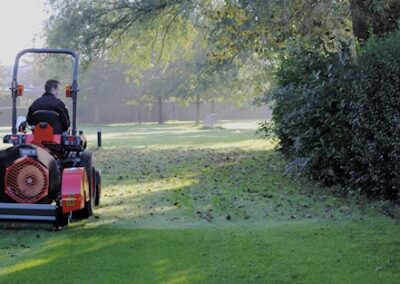

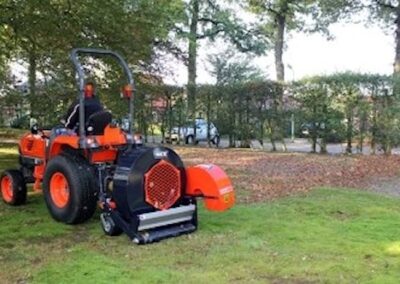

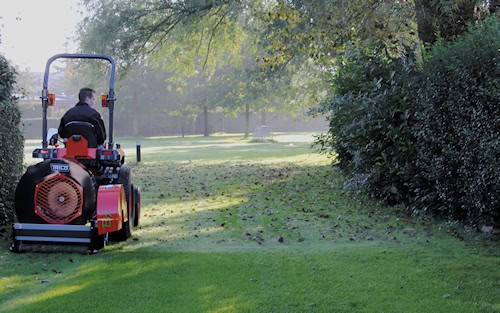

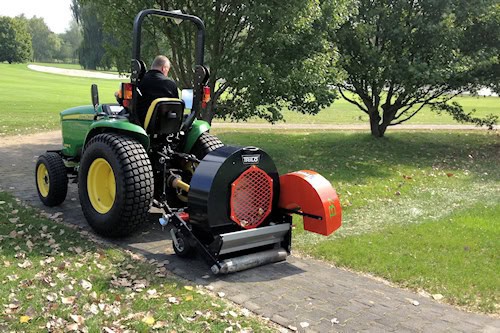

The TRILO B7 leaf blower is a compact, low weight blower with a large capacity. This makes this blower very suitable for tractors from 30 HP (22 kW). This powerful leaf blower is equipped with a Walterscheid PTO shaft with overrun clutch and is driven by a Ø 650 mm fan in a TRILO centrifugal pump. The gauge wheels and anti-scalp roller ensure the blower follows the contours of the soil perfectly and prevent damage to your spout and turf. The reverse spout (standard on the B7A-version) can be hydraulically operated from the driver’s seat. By setting the spout downward, the B7 will clean both sides of the road simultaneously.
Technical specifications
| Fan diameter: | Ø 650 mm |
| Number of fan blades: | 10 |
| PTO output: | > 30 hp |
| Castor wheels: | 11×7.00-4 |
| PTO: | 540 RPM |
| Drive: | Power take-off |
| Three point hitch: | Cat I-II |
| Required hydraulics: | 120 bar – 15 l/min. |
| Required hydraulic connections: | 1 x double acting |
| Weight: | 215 kg |
| Measurements (LxWxH): | 1,20 x 1,40 x 1,25 m |
| Air capacity: | 300 m3/min. |
| Noise level: | 96 dB(A) |
