Seppi PORT-X accessory carrier
Features PORT-X™ direct
- Accessory carrier
PORT-X™ WITHOUT autonomous hydraulic circuit with quick coupling system - Oil pressure: 180-250 bar (2,600-3,600 psi), required hydraulic flow: 40-50 l/min (10.6-13.2 gpm)
- 3-point rear linkage 1 & 2 cat.
- Hydraulic telescopic adjustment of working width
- Toucher with spring return mechanism
- Floating mechanism for XSC and XSA
- Support wheels
- Electric remote control
Features PORT-X™ hyd
- Accessory carrier
PORT-XWITH autonomous hydraulic circuit with quick coupling system - Suitable for tractors from 25 to 60 HP
- Gearbox: 540 rpm
- Independent hydraulic circuit
PORT-Xdouble with oil cooler- 3-point rear linkage 1 & 2 cat.
- Hydraulic telescopic adjustment of working width
- Toucher with spring return mechanism
- Floating mechanism for XSC and XSA
- Support wheels
- Electric remote control

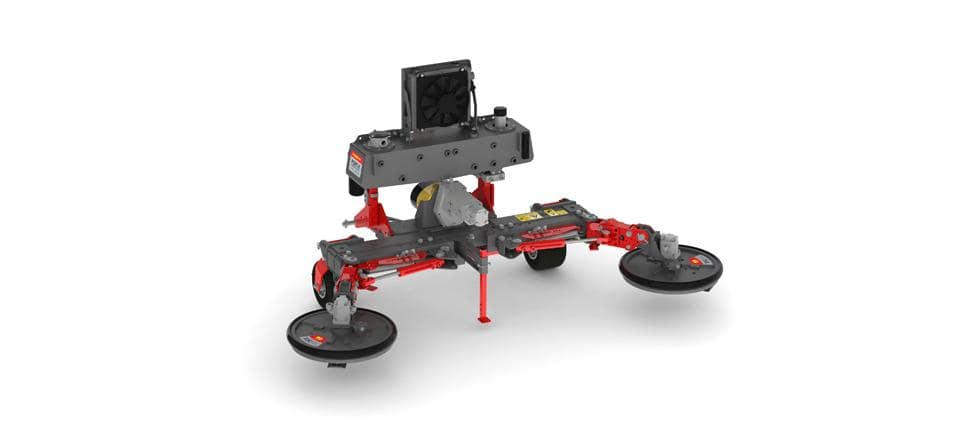

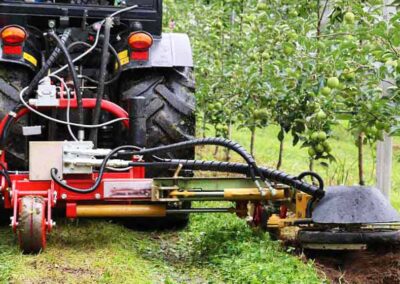

PORT-X is an equipment carrier (with 3-point linkage for PTO tractors) with a modular quick coupling system for attaching accessories for under canopy maintenance in orchards and vineyards.
Seppi PORT-X accessory carrier
Accessory Carrier with 3-point-linkage incl. Quick Coupling System 2-FAST
Used to connect an accessory module for undercanopy maintenance to the tractor
PORT-Xdirect – Interface carrier without autonomous hydraulic circuit to connect directly to the tractor hydraulicPORT-X– Interface carrier with autonomous hydraulic circuit
The accessory carrier PORT-X™ is equipped with a 3-point rear linkage, support wheels and the quick coupling system 2-FAST™.

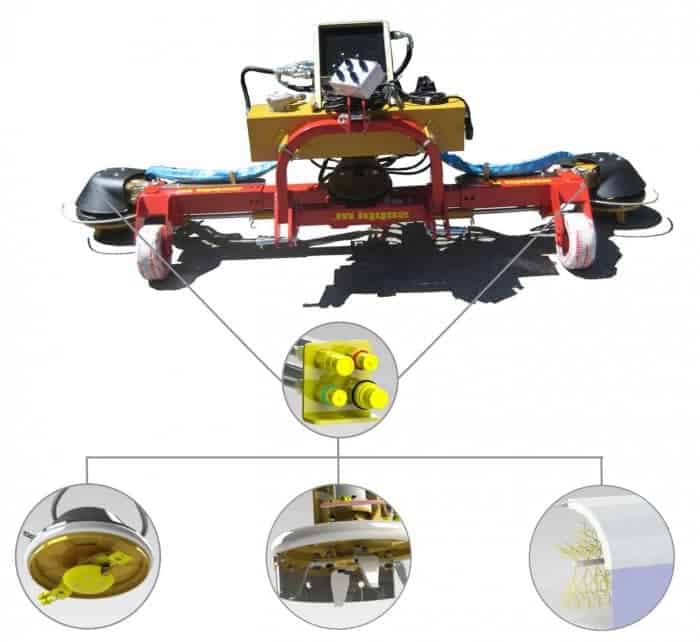

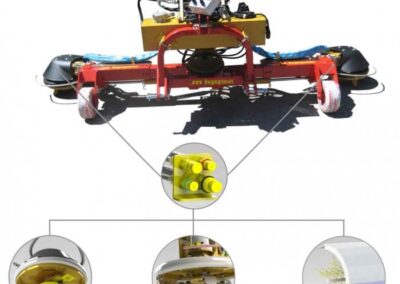

The carrier can be equipped with easy changeable accessory modules for under canopy maintenance. The hydraulic side shift allows a telescopic adjustment of the working outreach between the growing rows.
The basic configuration includes 1 or 2 (model double) interchangeable modules of your choice. Additional modules can be ordered extra.
Compatible and interchangeable undercanopy modules – single or double version:

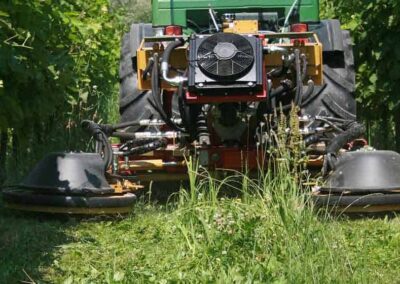

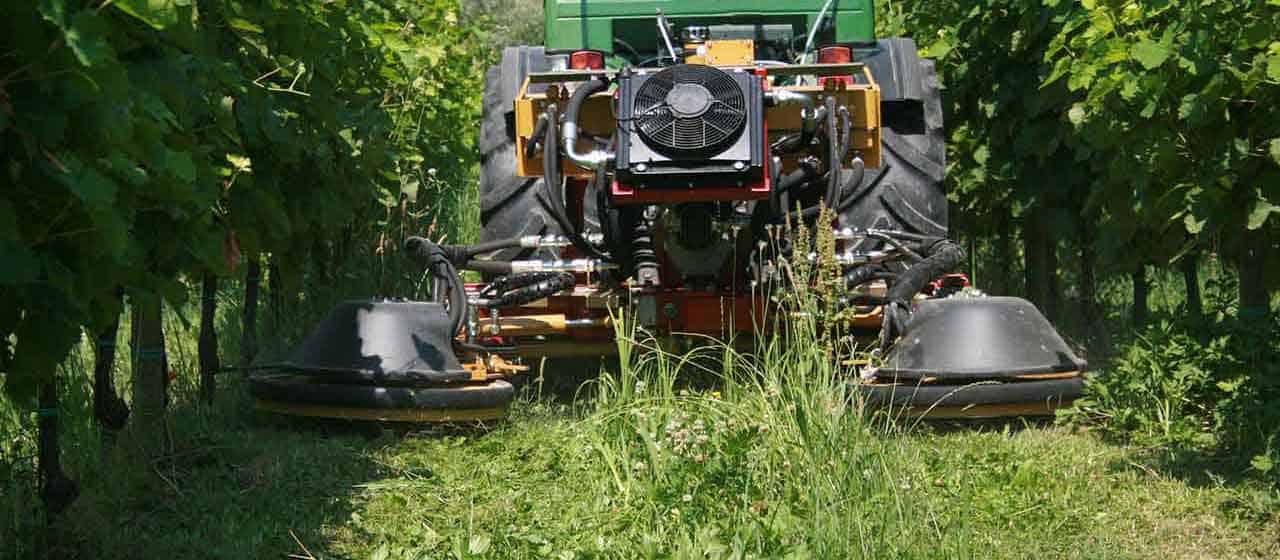

- XSC – outrigger for inter-row mowing

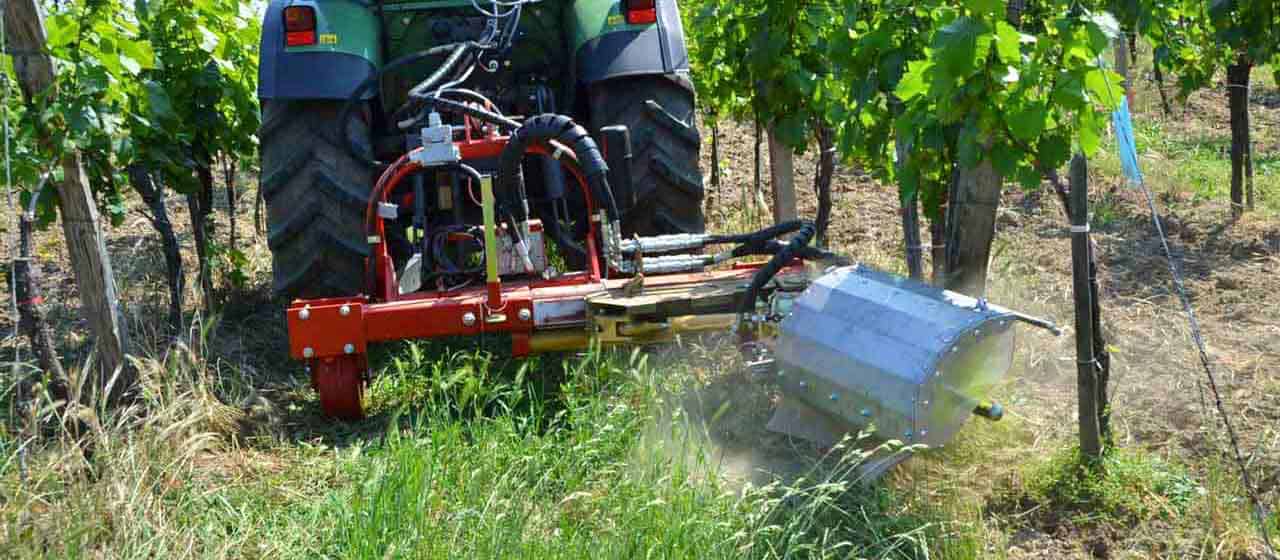

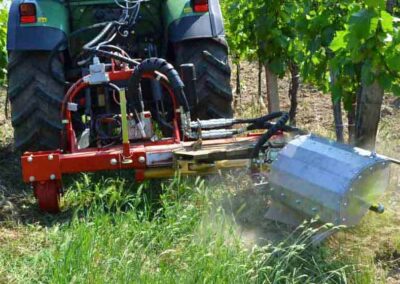

- XSA – cultivator to eradicate weeds
- XSP – shoot remover
- XAN – sweeper
Features PORT-X™ direct
- Accessory carrier
PORT-X™ WITHOUT autonomous hydraulic circuit with quick coupling system - Oil pressure: 180-250 bar (2,600-3,600 psi), required hydraulic flow: 40-50 l/min (10.6-13.2 gpm)
- 3-point rear linkage 1 & 2 cat.
- Hydraulic telescopic adjustment of working width
- Toucher with spring return mechanism
- Floating mechanism for XSC and XSA
- Support wheels
- Electric remote control
Features PORT-X™ hyd
- Accessory carrier
PORT-XWITH autonomous hydraulic circuit with quick coupling system - Suitable for tractors from 25 to 60 HP
- Gearbox: 540 rpm
- Independent hydraulic circuit
PORT-Xdouble with oil cooler- 3-point rear linkage 1 & 2 cat.
- Hydraulic telescopic adjustment of working width
- Toucher with spring return mechanism
- Floating mechanism for XSC and XSA
- Support wheels
- Electric remote control
For more information about this product feel free to visit the Seppi website.
