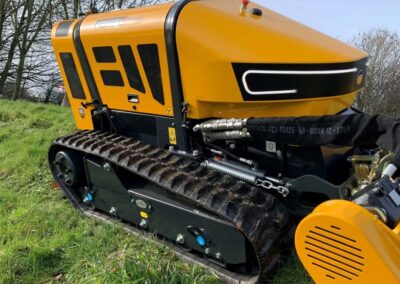

Robocut T400
- Proven Yanmar engine technology – Stage V compliant
- Twin roll-over protection bars
- Fully enclosed, all-metal panels
- Flailheads upto 1.6m width
- Responsive remote control unit
- 150m working range
- Innovative low centre-of-gravity design
- Choice of track options
- Robust build quality
- Comprehensive range of attachments
ROBOCUT T400 SPECIFICATION |
|
| Make | YANMAR, 3 cylinder, Stage V |
| Horsepower | 40hp (27.5kw) @ 3000rpm |
| Torque | 105Nm |
| Fuel | Diesel |
| Fuel tank capacity | 21 litres |
| Water-cooled radiator | 3 core havy duty |
| Self-cleaning (reversible fan) | Standard manual and automatic |
| Transmission | Fine control hydrostatic |
| Maximum noise levels | 80dB(A) |

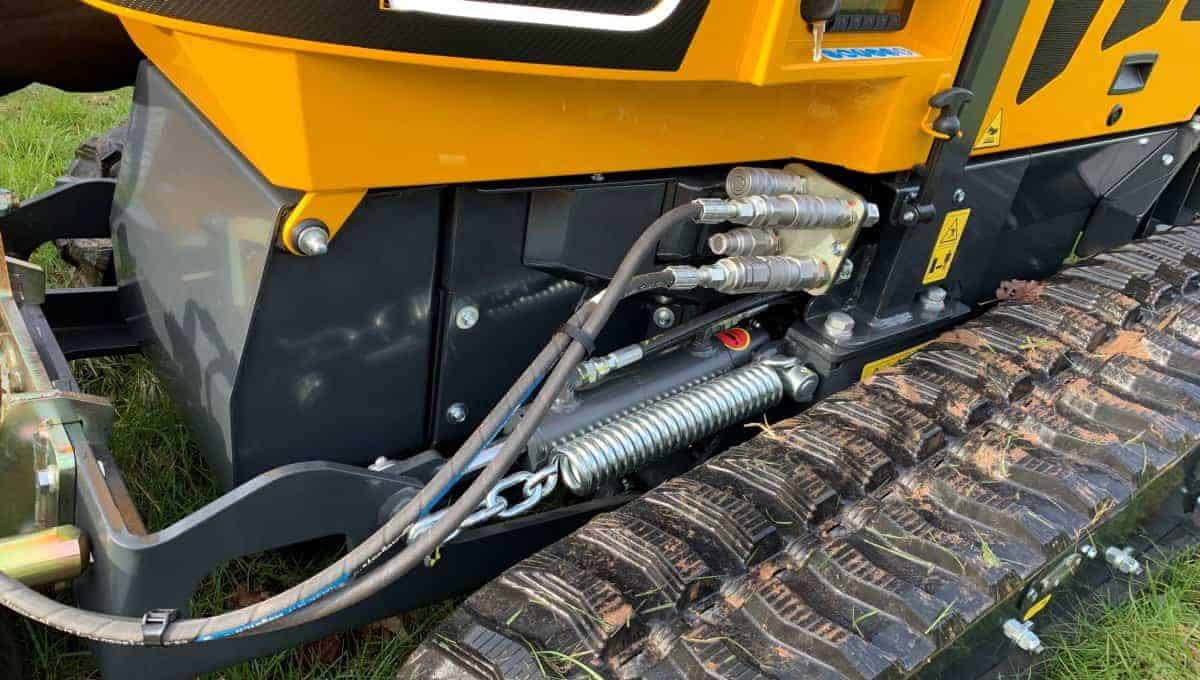

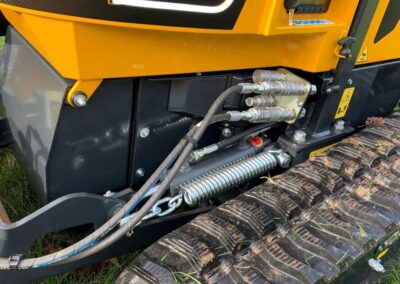

Hydraulics |
|
| Independent flailhead circuit | Closed circuit piston Max 55l/min @ 280 Bar |
| Independent track drive circuit | 2 x closed circuit piston Max 57 l/min @ 250 Bar |
| Aux service | 1 double acting auxillery service |
| Independent intercooler | Standard |
| Oil tank capacity | 11 litres |
| Attachment lift capacity | 550kg |

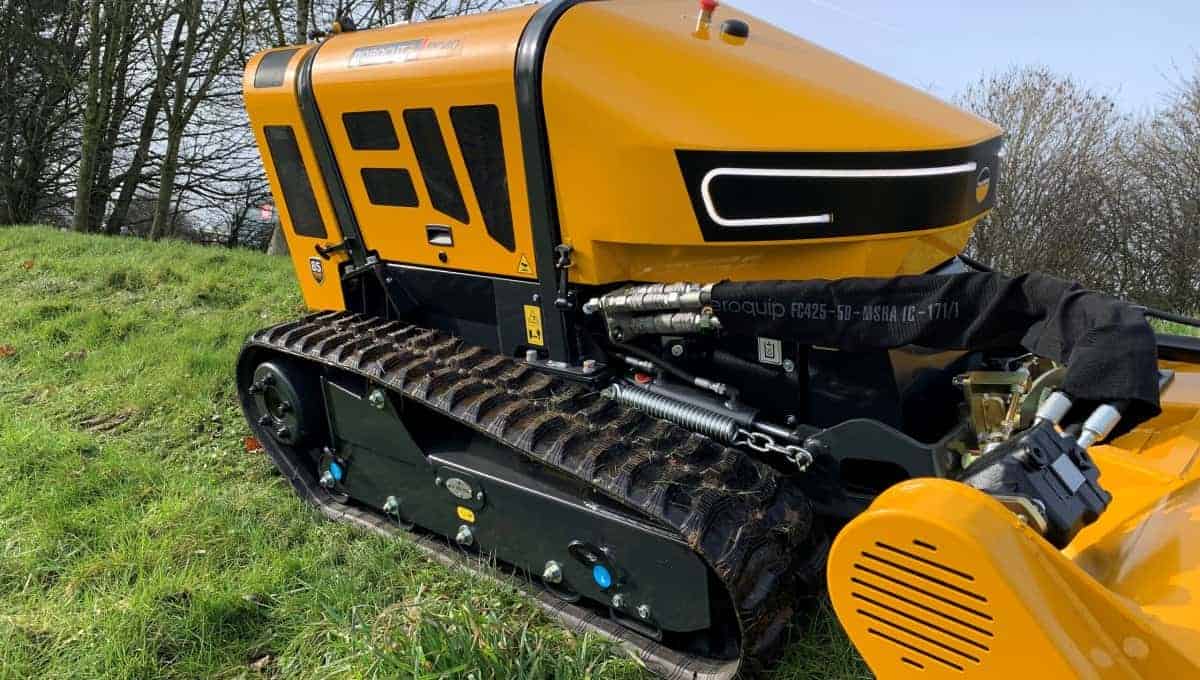

Tracks |
|
| Rubber | Standard ~ max working angle 40° |
| Rubber with spikes | Optional ~ max working angle 55° |
| Self-tightening | Standard |
| Length (axle to axle) | 1192mm |

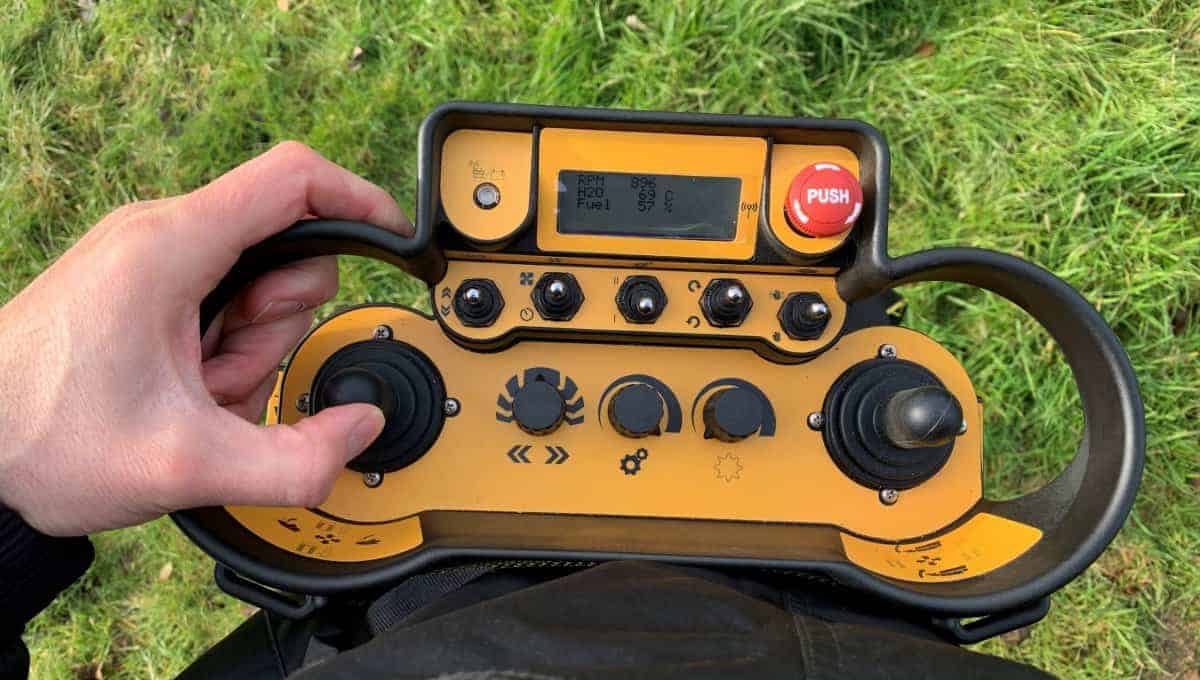

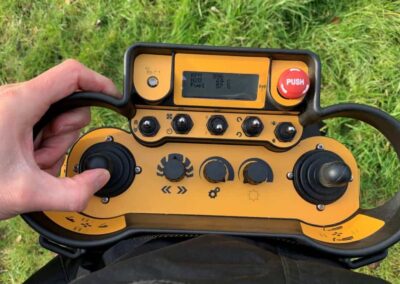

Remote Controls |
|
| Working range | 150m |
| Frequency | 434Mhz (certified by CE legislation) |
| Battery | Interchangeable, rechargeable, 2 with each unit, charge on machine |
| Proportional joysticks | Standard |
Dimensions |
|
| Overall width | 1310mm |
| Overall length (without attachment) | 1960mm |
| Overall height | 1120mm |
Weight |
|
| ROBOCUT2 RC40 | 1150kg |
Performance |
|
| Potentiometer speed control (0 – 100%) | 1st gear (low range) Forward and back, 0 – 4km/h2nd gear (low range) Forward and back, 0 – 7km/h |

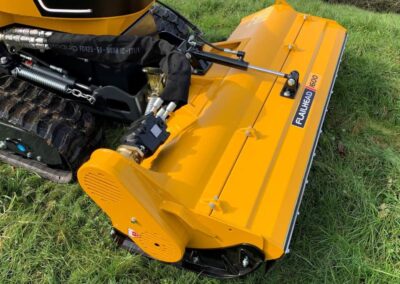

Flailhead / Attachment |
|
| Oil flow | 59 l/min |
| Pressure | 350 Bar |
| Rotor speed | 3300 rpm |
| Front and rear flaps | Standard |
| Flails | Y – Flails for cutting grass and light wood up to 30mm diameter J (hammer) – Flails for cutting thick grass and wood up to 50mm diameter |
| Rotor width | 1.3m to 1.6m |
| Roller diameter | 100mm |
| Cutting height range (via roller adjustment) | 20mm – 85mm (5 positions) Flailhead can be lifted to cut higher |
| Hydraulic lift | -300mm to +400mm |
| Floatation (angle) | 14° up and down (+/-) |

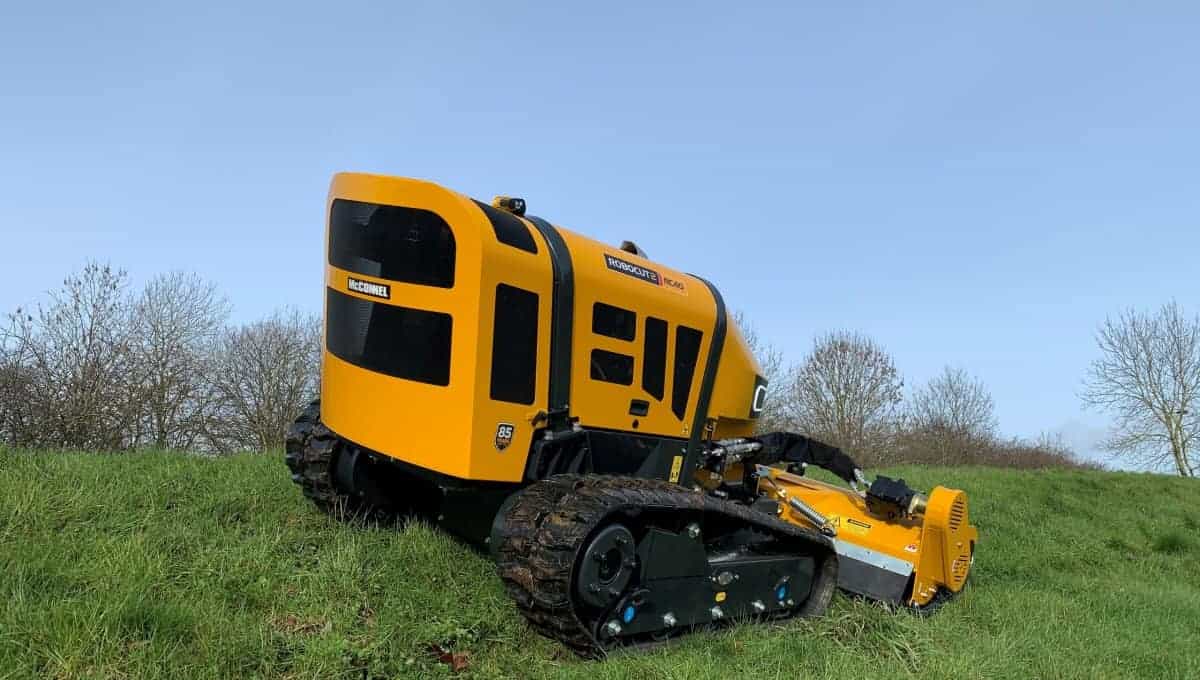

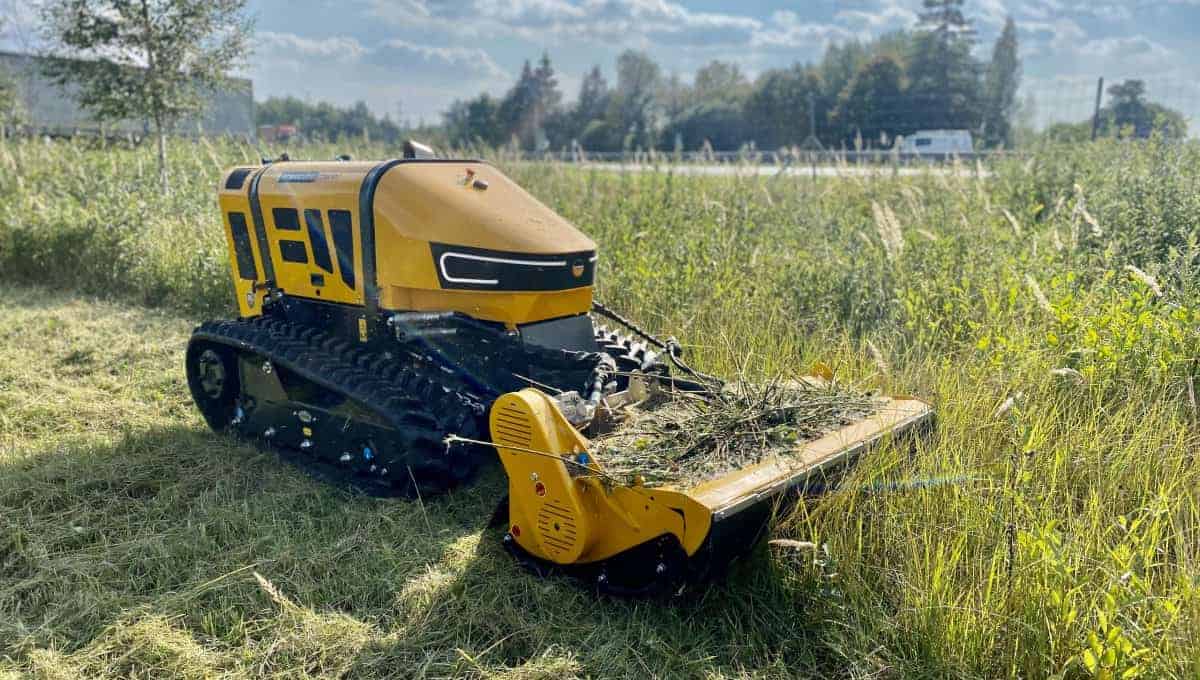

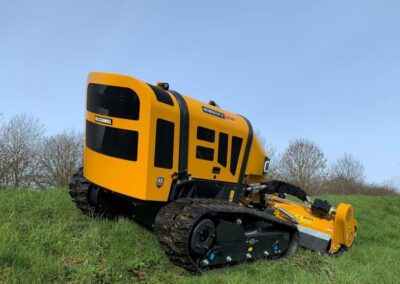

Designed especially for tackling tough terrain, the ROBOCUT T400 features a low centre of gravity design and durable rubber tracks that make it an outstanding all-terrain mowing machine, capable of mastering slopes up to 55 degrees whilst enhancing operator safety by removing them from the danger zone.

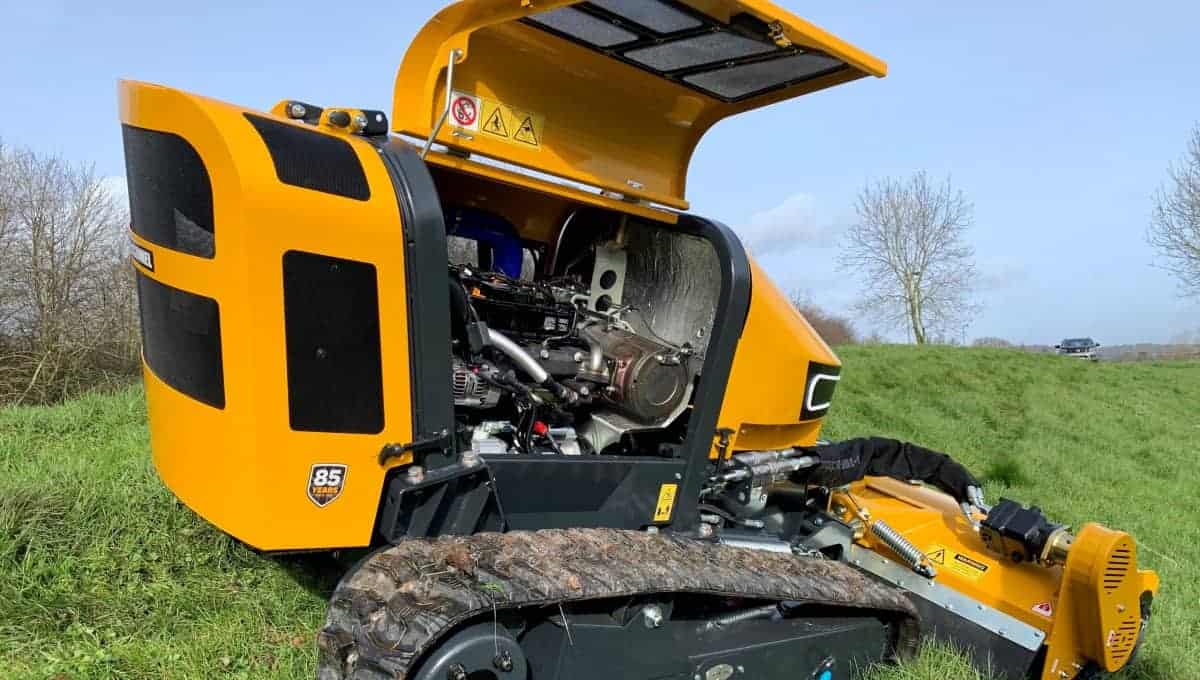

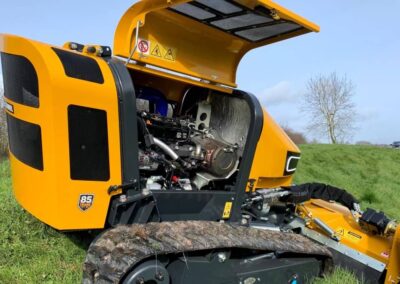

Power comes from a 40hp, three-cylinder, Yanmar diesel engine that uses a DPF filter system to ensure it meets the latest Stage V emissions regulations without the need for Adblue.
Robocut T400
Get a Quote for Robocut T400
Description
Designed especially for tackling tough terrain, the ROBOCUT T400 features a low centre of gravity design and durable rubber tracks that make it an outstanding all-terrain mowing machine, capable of mastering slopes up to 55 degrees whilst enhancing operator safety by removing them from the danger zone.
Power comes from a 40hp, three-cylinder, Yanmar diesel engine that uses a DPF filter system to ensure it meets the latest Stage V emissions regulations without the need for Adblue.
Key features
- Proven Yanmar engine technology – Stage V compliant
- Twin roll-over protection bars
- Fully enclosed, all-metal panels
- Flailheads upto 1.6m width
- Responsive remote control unit
- 150m working range
- Innovative low centre-of-gravity design
- Choice of track options
- Robust build quality
- Comprehensive range of attachments
Access all areas
ROBOCUT thrives in the toughest terrain, making it easy to work on busy highways, embankments, railway sidings, steep-slopes or riverbanks. It ensures safe, productive working without risk to life and limb.
Versatility
McConnel continues to expand its range of attachments, offering a tool for almost every challenge. From snow clearance to forestry, grass cutting to quarry maintenance, McConnel can provide a safe and productive remote control solution.
Benefits
- Up to 25 times faster than manual cutting
- Tackles slopes up to 55 degrees
- More fuel efficient than a three-man strimming team
- Multi-functional remote control capability
- Proven engine technology delivers outstanding reliability
- Easy to use proportional controls
- Work safely outside danger zones
