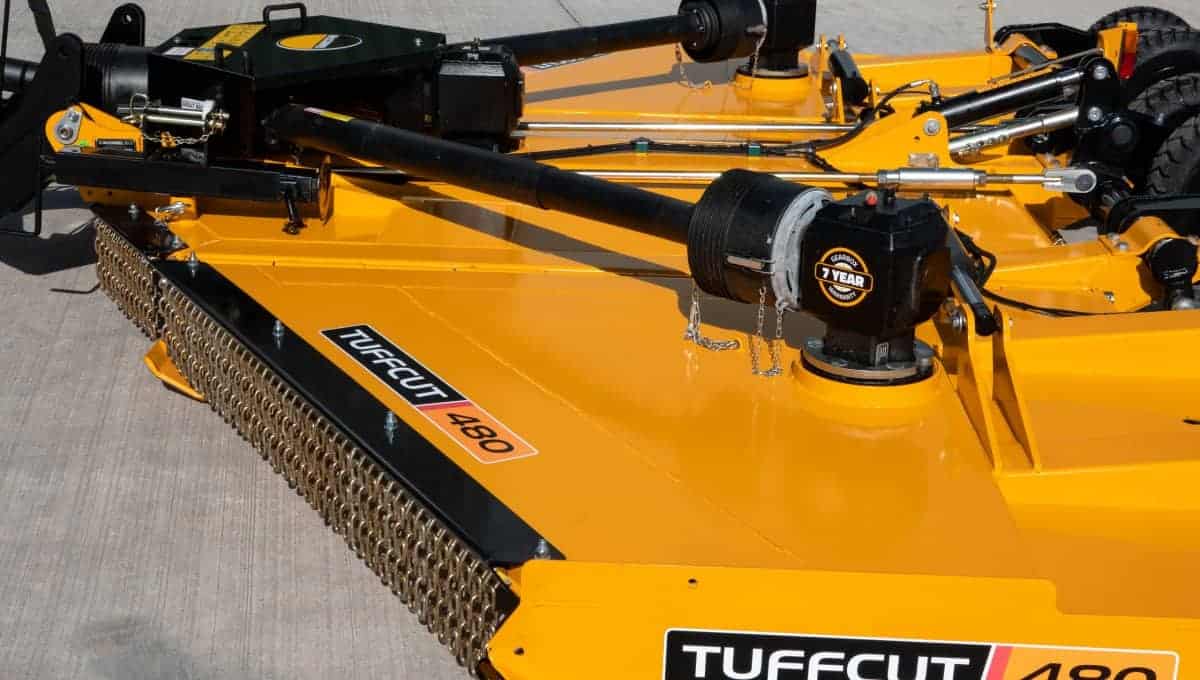

McConnel Tuffcut 480
- 4.6m working widths
- High and low hitch options
- Bondioli & Pavesi gearboxes and drivelines
- 60 degrees of wing move-ment (+45° up, -15° down)
- Heavy-duty gearboxes
- 1000rpm wide angle PTO
- Slip Clutch Protection
- Front and rear chain guards
- Hardened updraft swinging blades
- Cutting heights from 25mm to 400mm
- 100mm cutting capacity
- 9, 12 or 18 blades
- Overlapping blades
- 4,800m per minute blade speed
| Model | TUFFCUT 480 |
| Working width | 4.60m / 15′ 1″ |
| HP Requirement | 70hp / 52kW |
| Machine weight | 2440kg / 5379lbs |
| Attachment | Drawbar |
| Cutting height | 25mm – 400mm (1″ – 1′ 4″) |
| Cutting capacity | 100mm (4″) |
| Deck height* | 0.23m / 9″ |
| Overall width | 4.79m / 15′ 9″ |
| Overall length | 4.91m / 16′ 1″ |
| Transport width | 2.70m / 8′ 10″ |
| Transport height | 2.17m / 7’2″ |
| PTO speed | 1000rpm |
| Deck construction | All welded construction |
| Deck material thickness | 6mm (1/4″) |
| Skid construction | Replaceable bolt on skid shoes |
| Side skirt material thickness | 5mm (3/16″) |
| Driveline | ASAE category 6 |
| Protection | 2-way slip clutches on rotor gearboxes. Overrun on input shaft |
| Number of blades | 9, 12 or 18 blades. Each 12mm (1/2″) 30 Carbon Boron hardened and tempered. Free swinging high lift – low friction |
| Blade bolts | M24 C/W shank grade 8.8 |
| Number of rotors | 3 |
| Blade overlap | 110mm |
| Blade tip speed | 80mps / 15748fpm |
| Hydraulic wing flex | 45° up / 15° down |
| Anti-scalp dish | 6mm (1/4″) round pan with blade holder bar |
| Input shaft | 1-3/8″ Z21 or Z6 SFT 6/8 tractor end |
| Gearbox [splitter] | Splitter – Cast Iron housing |
| Gearbox [rotor] | Rotor x 3 – Cast Iron housing |
| Gearbox oil capacity [splitter gearbox] | EP80-90W – 2.7 litres / 4.7 pints |
| Gearbox oil capacity [centre gearbox] | n/a |
| Gearbox oil capacity [rotor gearboxes] | 85W – 140 Oil – 4.3 litres / 7.6 pints |
| Wheels and Tyres | 8 wheels – 600-9 10 PLY pneumatic tyre with steel hub |
| Wheel mount assembly | Tubular welded axle |
| Front guard | Single chain guards on each deck |
| Rear guard | Single chain guards on each deck |
| *Underside of deck to skid |
Ideal for large-scale farmers, local government teams, and professional mowing contractors, Tuffcut machines can be used in a huge variety of applications from airports and sports venues to pasture and stubble.
Hardened updraft swinging blades ensure an effective cutting capacity of up to 100mm, while hydraulically folding wings ensure a fast and smooth transition from transport to working position.
McConnel Tuffcut 480
Get a Quote for McConnel Tuffcut 480
Description
Ideal for large-scale farmers, local government teams, and professional mowing contractors, Tuffcut machines can be used in a huge variety of applications from airports and sports venues to pasture and stubble.
Hardened updraft swinging blades ensure an effective cutting capacity of up to 100mm, while hydraulically folding wings ensure a fast and smooth transition from transport to working position.
Key features
- 4.6m working widths
- High and low hitch options
- Bondioli & Pavesi gearboxes and drivelines
- 60 degrees of wing move-ment (+45° up, -15° down)
- Heavy-duty gearboxes
- 1000rpm wide angle PTO
- Slip Clutch Protection
- Front and rear chain guards
- Hardened updraft swinging blades
- Cutting heights from 25mm to 400mm
- 100mm cutting capacity
- 9, 12 or 18 blades
- Overlapping blades
- 4,800m per minute blade speed
Performance
With hardened updraft blades, a powerful triple rotor and blade tip speeds of 4,800 metres per minute, the Tuffcut 480 delivers a powerful high-speed cutting action.
Productivity
McConnel’s Tuffcut series machines operate quickly and effectively while delivering an attractive cut. The Tuffcut 480’s 60 degrees of flexibility also ensures it closely follows the contours of the ground making it equally as effective in undulating terrain.
Designed for high-performance mowing, McConnel’s range of Tuffcut flex-wing mowers can be used to maintain vegetation in a wide range of environments, including: airfields, racecourses, crop stubble, orchards, scrub control, parks, golf courses, pasture, and many others.
