McConnel Multidrive
- Low ground pressure: Outstanding power to weight ratio
- Unrivalled traction: Positive drive technology
- Superior hauling capacity: Carry payloads of up to 10,000kg while hauling up to 18,000kg
- 50km/h transport speed: Safe, stable and fuel efficient on the road
- Enhanced safety: Consistent even braking on steep banks
- Impressive height clearance: Available with a range of large diameter row cop wheels
- Greater Control: Customise the machine’s performance to the field conditions
- Easy to use: Straight forward design layout and ergonomic controls
- Unrivalled versatility: The ultimate, all-purpose, all-terrain load/tool carrying vehicle
- Work longer: Thrive in wet conditions when other machines are confined to the yard
- Stylish design: Compact design, outstanding build quality
- World class service: Professional support and back-up
- Good residual value: Renowned heritage and reputation
| Chassis | 3.8 and 4.2 metre wheel base Purpose built ladder type with DOMEX high tensile steel C-Sections & Bolted cross members 4 or 6 point quick-attach implement mounting system |
| Engine | Cummins 225hp QSB6.7 litre 225 hp/168 kw @ 2300 r.p.m Peak power 230hp (172 kw) @2000 r.p.m 949Nm/700 lb/ft @ 1500 r.p.m 40cfm Turbo-charged intercooled air compressor |
| Transmission | ZF 6WG160 fully automatic with torque converter lock-up & manual over-ride Six forward & three reverse gears operated with single lever control Electrically operated 2/4WD select Front wheel drive disconnect Hydraulic parking brake Lockable centre diff and parking brake |
| Axles | Heavy duty front and rear steering with switch operated differential locks Planetary reduction hubs and dual circuit power operated multi-plate oil immersed brakes 72” – 80” track |
| Steering | 7-function Four-Wheel-Steering system Road mode 2WS, 4WS, Crab, Delay, Manual, Offset |
| Suspension | Articul-air suspension system with front and rear self-levelling air suspension A-frame trailing arm front and H-frame trailing arm rear Heavy duty shock absorbers |
| Hydraulic system | Hydraulic PTO flow control system with in-cab electronic control Load sensing 45cc + 33cc gear pump. PTO output with in-cab controls 1 x D/A spool valve, diverter valve & kit to suit implement electro-hydraulic system Side mounted oil tank with filter & gauge |
| Cab | World series mid-mounted cab with all-round tinted glass for panoramic vision Climate controlled air conditioning DAB Stereo/CD player with Bluetooth KAB suspension seat with lap belt & arm rests Adjustable steering column MCU TFT instrument dispaly and control system Digital dash instrument display Control console for implement control gear Buddy seat Large electric side mirrors with adjustable arms Work lights Aerolite twin LED flashing beacon Wide/deep anti-slip access steps |
| Additional | Stainless steel exhaust pipe 300-litre side mounted fuel tank Front & rear road lights Front mudguards 7-pin trailer lighting socket at rear Automatic reversing camera with night vision Nose camera Additional bonnet lamps |
| Tyre & fixed center wheels | Michelin Multibib 540/65 R30 Michelin Axiobib 620/75 R30 Michelin Axiobib 650/75 R30 Michelin MachXbib 710/55 R30 Alliance 385 18.4 R34 Michelin Multibib 600/65 R34 Kleber Super-3 300/95 R46 Michelin Agribib 340/85 R46 Michelin Agribib 380/90 R46 Michelin SprayBib 380/90 R46 |
| Optional equipment | Uprated hydraulic systems and oil coolers. Additional hydraulic spool valves. Automatic regulating PTO outputs. Range of drawbars or hydraulic pick-up hitches. Hydraulic and/or air trailer brake systems. Alternative mudguards to suit particular wheels & tyres. Instrument mounting bracket – in cab. Carbon cab filters (in-lieu of standard card filters). Bolt on step extension. Galvanized chassis finish. Stainless steel fuel & hydraulic tanks. Rear work lights. Reversing alarm. |
| Load Capacity |
10,000kg including implement & product 18,000kg Hauling Capacity |
| Sprayer demount unit | 50 km/h |

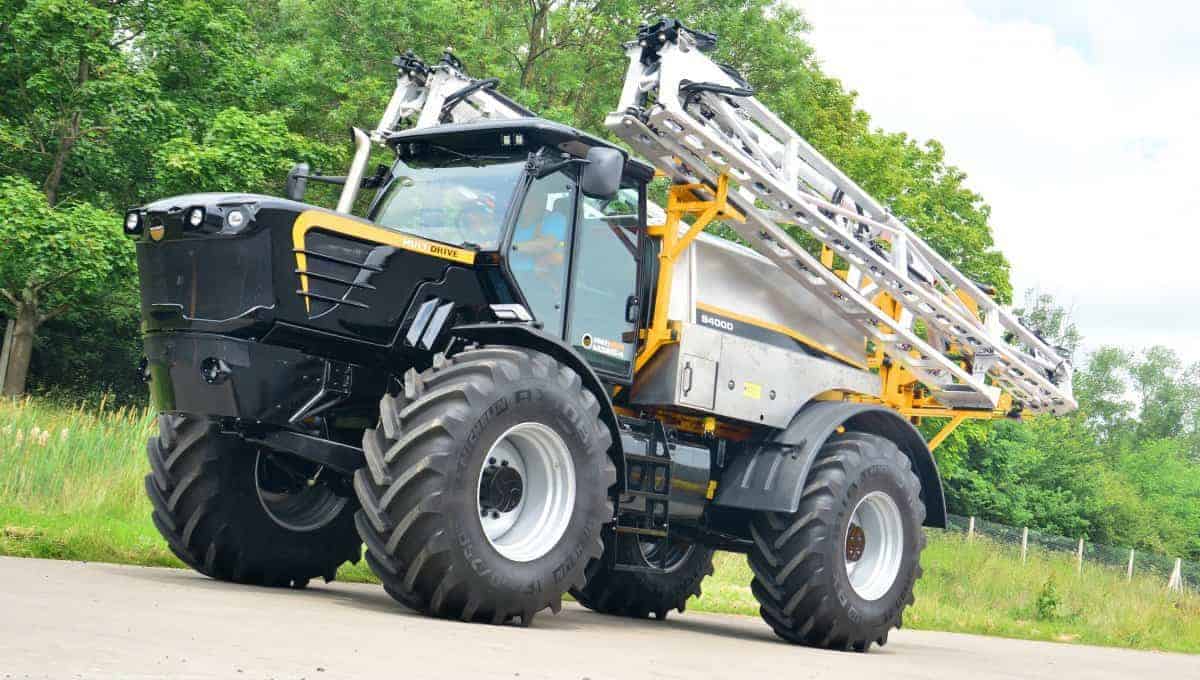

One of the toughest and most versatile series of multi-purpose load carriers ever built, the Multidrive is precision-engineered in the UK for quality and durability and has forged a worldwide reputation as the ultimate all-terrain load-carrier. Capable of carrying a 10-tonne load such as a 5,000-litre sprayer unit or an 8-tonne spreader hopper, the Multidrive can also haul an additional 18-tonne load.
McConnel Multidrive
One of the toughest and most versatile series of multi-purpose load carriers ever built, the Multidrive is precision-engineered in the UK for quality and durability and has forged a worldwide reputation as the ultimate all-terrain load-carrier. Capable of carrying a 10-tonne load such as a 5,000-litre sprayer unit or an 8-tonne spreader hopper, the Multidrive can also haul an additional 18-tonne load.
More power, greater comfort and a major upgrade in driver technology are the key benefits delivered by McConnel’s new Multidrive M380-4.
Its mechanical drive technology offers best-in-class traction – delivering power to all four wheels simultaneously for better grip and enabling operators to work safely in challenging conditions.
The M380-4 features a Tier-4 compliant Cummins diesel engine that delivers a 19% boost in power, a 20% increase in torque and a reduction in fuel consumption of around 8%. It is available in 3.8m and 4.2m wheelbase options.
With a top speed of 50 km/h and a quiet, comfortable cab, the Multidrive is fast and cost-efficient on the road, increasing the working range of contractors.
- Low ground pressure: Outstanding power to weight ratio
- Unrivalled traction: Positive drive technology
- Superior hauling capacity: Carry payloads of up to 10,000kg while hauling up to 18,000kg
- 50km/h transport speed: Safe, stable and fuel efficient on the road
- Enhanced safety: Consistent even braking on steep banks
- Impressive height clearance: Available with a range of large diameter row cop wheels
- Greater Control: Customise the machine’s performance to the field conditions
- Easy to use: Straight forward design layout and ergonomic controls
- Unrivalled versatility: The ultimate, all-purpose, all-terrain load/tool carrying vehicle
- Work longer: Thrive in wet conditions when other machines are confined to the yard
- Stylish design: Compact design, outstanding build quality
- World class service: Professional support and back-up
- Good residual value: Renowned heritage and reputation
