McConnel Robocut T600
- POWER: More power than ever before (increase of 40%)
- FUEL EFFICIENCY: 20% more efficient on fuel so better value on each job
- OUTPUT: More coverage – get almost double the output in a day
- SAFETY: New flailhead safety control system
- GRADIENT: Work on slopes up to 55° (alarm at 50° and automatic shut-off at 70°)
- PRECISION & CONTROL: 28% increase in track drive pressure plus improved hydraulic float system
- GPS AUTOSTEER: Ensures maximum productivity, improved safety and more efficient working
| Make | HATZ, 3 cylinder, turbo, tier 4 final |
| Horsepower | 60hp (45kw) @ 2800 rpm |
| Torque | 185Nm |
| Fuel | Diesel |
| Fuel tank capacity | 38 litres |
| Water-cooled radiator | 3 core havy duty |
| Self-cleaning (reversible fan) | Standard manual and automatic |
| Transmission | Fine control hydrostatic |
| Maximum noise levels | 77dB(A) |
Hydraulics |
|
| Independent flailhead circuit | Closed circuit piston Max 59 l/min @ 2800 rpm 350 Bar |
| Independent track drive circuit | 2 x closed circuit piston Max 62 l/min @ 2800 rpm 300 Bar |
| Aux service | 1 double acting auxillery service for additional service 16 l/min at 210 bar, double acting |
| Independent intercooler | Standard |
| Oil tank capacity | 20 litres (40 litres held in system) Biodegradable oil |
| Attachment lift capacity | 550kg |
Tracks |
|
| Rubber | Standard ~ max working angle 40° |
| Rubber with spikes | Optional ~ max working angle 55° |
| Self-tightening | Standard |
| Length (axle to axle) | 1192mm |
Remote Controls |
|
| Working range | 150m |
| Frequency | 434Mhz (certified by CE legislation) |
| Battery | Interchangeable, rechargeable, 2 with each unit, charge on machine |
| Proportional joysticks | Standard |
Dimensions |
|
| Overall width | 1300mm |
| Overall length (without attachment) | 2285mm |
| Overall height | 1050mm |
Weight |
|
| ROBOCUT RC56 | 1200kg |
| Flailhead | Depends on size |
Performance |
|
| Potentiometer speed control (0 – 100%) |
1st gear (low range) Forward and back, 0 – 3,5km/h2nd gear (low range) Forward and back, 0 – 7km/h |
Flailhead / Attachment
|
|
| Oil flow | 59 l/min |
| Pressure | 350 Bar |
| Rotor speed | 3300 rpm |
| Front and rear flaps | Standard |
| Flails | Y – Flails for cutting grass and light wood up to 30mm diameter J (hammer) – Flails for cutting thick grass and wood up to 50mm diameter |
| Rotor width | 1.3m to 1.9m |
| Roller diameter | 100mm |
| Cutting height range (via roller adjustment) |
20mm – 85mm (5 positions) Flailhead can be lifted to cut higher |
| Hydraulic lift | -300mm to +400mm |
| Floatation (angle) | 14° up and down (+/-) |

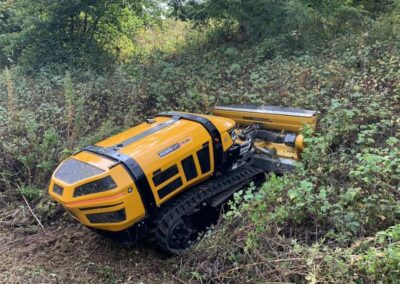

McConnel Robocut T600
Get a Quote For McConnel Robocut T600
The McConnel ROBOCUT utilises the latest advancements in technology to deliver the ultiimate in remote controlled machinery.
The new McConnel ROBOCUT range takes a tried and tested concept that builds on it with vision, innovation and the most advanced technology to lead the market. Thriving in challenging terrain, hazardous areas, and restricted-access zones, McConnel’s new ROBOCUT range helps you work faster, smarter and harder than ever before.
Key features
- POWER: More power than ever before (increase of 40%)
- FUEL EFFICIENCY: 20% more efficient on fuel so better value on each job
- OUTPUT: More coverage – get almost double the output in a day
- SAFETY: New flailhead safety control system
- GRADIENT: Work on slopes up to 55° (alarm at 50° and automatic shut-off at 70°)
- PRECISION & CONTROL: 28% increase in track drive pressure plus improved hydraulic float system
- GPS AUTOSTEER: Ensures maximum productivity, improved safety and more efficient working
New Product Features
- Revolutionary new hydraulic head floatation system can be programmed to suit different attachments and conditions.
- Fully encolsed body panels keep grass and debris out.
- Improved efficiency and larger fuel capacity enables up to 6 hours between refills.
- Leading power-to-weight ratio on the market
- Safety system for the hydraulic front hood, including screen notification.
- The new digital control system is supplied with two batteries that can be charged on board ROBOCUT.
- Integrated programmable four corner LED warning beacons and daylight running lights.
- 56hp HATZ Diesel engine, OEM modified and tested specifically for ROBOCUT.
- Maximum stability in all terrain achieved by ROBOCUT thanks to perfect 50/50 weight distribution.
- Lowered centre of gravity, greater slope capacity and twin roll bars.
