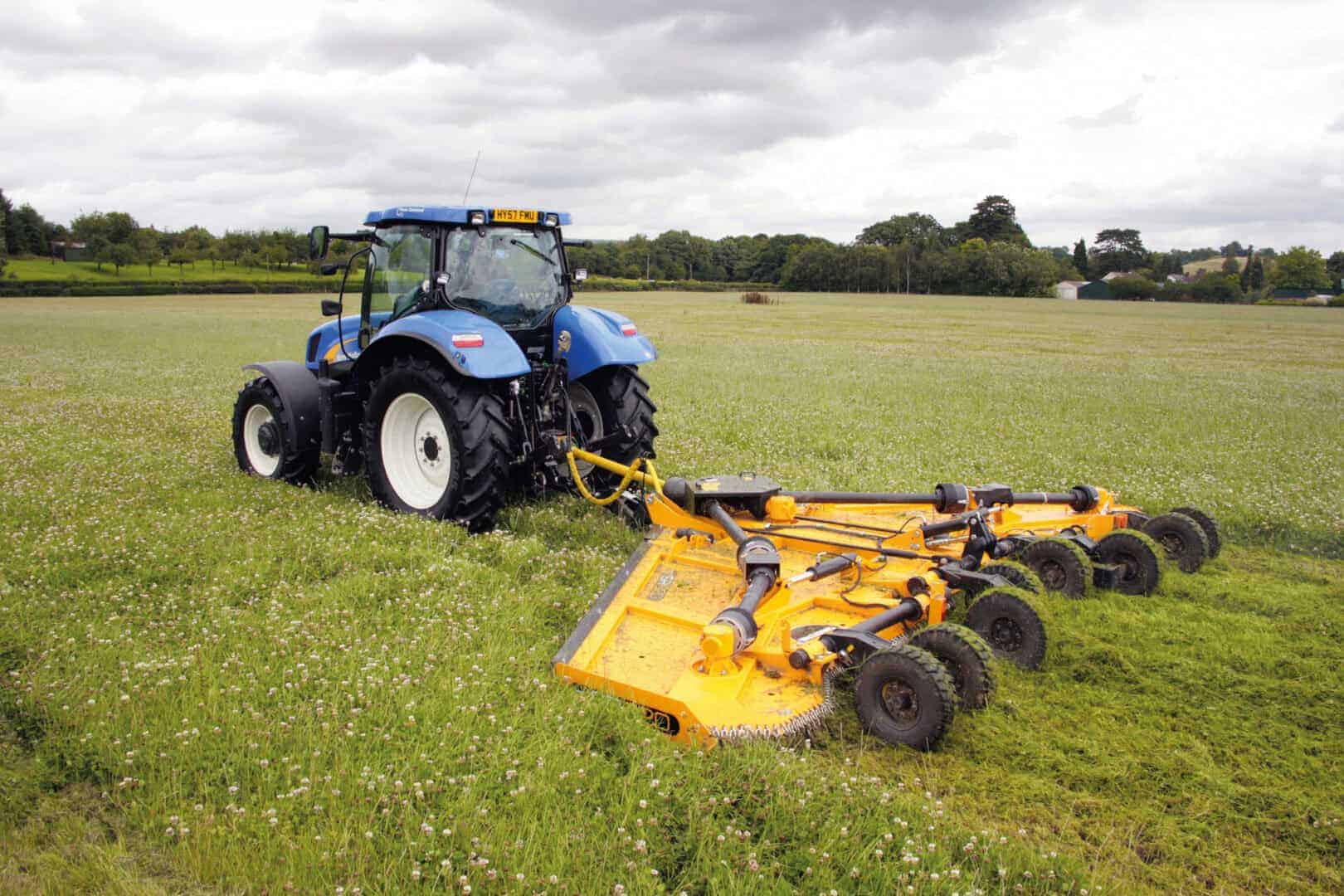

McConnel Tuffcut 650
- 6.28m working width
- High and low hitch options
- 60 degrees of wing movement (+45° up, -15° down)
- Bondioli & Pavesi gearboxes and drivelines
- Five powerful rotors
- 1000rpm wide angle PTO
- Slip Clutch Protection
- Front and rear chain guards
- Hardened updraft swinging blades
- Cutting heights from 25mm to 210mm
- 500mm cutting capacity
- 9, 12 or 18 blades
- 4,740m per minute blade speed
- Walking axles
| Model | TUFFCUT 650 |
| Working width | 6.28m / 20′ 7″ |
| HP Requirement | 90hp / 67kW |
| Machine weight | 3100kg (6834lbs) |
| Attachment | Multi Position Drawbar |
| Cutting height | 25mm – 210mm (1″ – 8 1/4″) |
| Cutting capacity | 100mm (4″) |
| Deck height* | 0.23m / 9″ |
| Overall width | 6.47m / 21′ 3″ |
| Overall length | 5.07m / 16′ 8″ |
| Transport width | 2.70m / 8′ 10″ |
| Transport height | 2.90m / 9’7″ |
| PTO speed | 1000rpm |
| Deck construction | All welded construction |
| Deck material thickness | 6mm (1/4″) |
| Skid construction | Replaceable bolt on skid shoes |
| Side skirt material thickness | 5mm (3/16″) |
| Driveline | ASAE category 6 |
| Protection | 2/4-way slip clutches on rotor gearboxes. Overrun on input shaft |
| Number of blades | 15, 20 or 30 blades. Each 12mm (1/2″) 30 Carbon Boron hardened and tempered. Free swinging high lift – low friction |
| Blade bolts | M24 C/W shank grade 8.8 |
| Number of rotors | 5 |
| Blade overlap | 110mm |
| Blade tip speed | 79mps / 15551fpm |
| Hydraulic wing flex | 45° up / 15° down |
| Anti-scalp dish | 6mm (1/4″) round pan with blade holder bar |
| Input shaft | 1-3/8″ Z21 or Z6 SFT 6/8 tractor end |
| Gearbox [splitter] | Splitter – Cast Iron housing |
| Gearbox [rotor] | Rotor x 5 – Cast Iron housing |
| Gearbox oil capacity [splitter gearbox] | EP80-90W – 2.7 litres / 4.7 pints |
| Gearbox oil capacity [centre gearbox] | n/a |
| Gearbox oil capacity [rotor gearboxes] | 85W – 140 Oil – 1.3 litres / 2.3 pints |
| Wheels and Tyres | 8 wheels – 21×9 14 PLY wide pneumatic tyre with steel hub |
| Wheel mount assembly | Tubular welded walking axles |
| Front guard | Single chain guards on each deck |
| Rear guard | Single chain guards on each deck |
| *Underside of deck to skid |
Capable of tackling everything from grass to gorse, the Tuffcut 650 can cut material up to 100mm thick and has a fast-cutting action which enables operators to tackle up to six hectares an hour. Flexible wings with 60 degrees of movement ensure the Tuffcut 650 closely follows the contours of the ground and delivers an attractive cut with an even spread while walking axles deliver a smoother ride
McConnel Tuffcut 650
Get a Quote for McConnel Tuffcut 650
Description
Capable of tackling everything from grass to gorse, the Tuffcut 650 can cut material up to 100mm thick and has a fast-cutting action which enables operators to tackle up to six hectares an hour. Flexible wings with 60 degrees of movement ensure the Tuffcut 650 closely follows the contours of the ground and delivers an attractive cut with an even spread while walking axles deliver a smoother ride
Key features
- 6.28m working width
- High and low hitch options
- 60 degrees of wing movement (+45° up, -15° down)
- Bondioli & Pavesi gearboxes and drivelines
- Five powerful rotors
- 1000rpm wide angle PTO
- Slip Clutch Protection
- Front and rear chain guards
- Hardened updraft swinging blades
- Cutting heights from 25mm to 210mm
- 500mm cutting capacity
- 9, 12 or 18 blades
- 4,740m per minute blade speed
- Walking axles
Blade options
The Tuffcut 650 offers operators various cutting options, including a six-blade shredder kit with four updraft blades and two special blades for improved mulching. A blade tip speed of 4,740m per minute ensures a powerful cutting action which makes light work of maize stubble
Productivity
McConnel’s Tuffcut series machines operate quickly and effectively while delivering an attractive cut. The Tuffcut 650’s 60 degrees of flexibility also ensures it closely follows the ground’s contours, making it equally effective in undulating terrain.
Designed for high-performance mowing, McConnel’s range of Tuffcut flex-wing mowers can be used to maintain vegetation in a wide range of environments, including airfields, racecourses, crop stubble, orchards, scrub control, parks, golf courses, pasture, and many others.
